Model AQD 19 Capacity 2.5 to 4 seconds Weight (kg) 3.8 Kg Strap Material PET / PP Strap Air Consumption Air pressure : 0.5 to 0.8 MPa Packaging Type PET / PP Strap Strap Size (mm) 12 mm to 19 mm (AQD 19) & 12 MM TO 25 MM (AQD 25) Strap joint Heat Sealed [...]

Voltage(V/Hz) 440V 50/60HZ (3PH) Power (kw) 9.6 Loading(kg) 30 Speed(m/min) 0~10 Tunnel Size (L×W×H)(mm) 1200×650×(50-350) External Dimensions(L×W×H)(mm) 1600×850×1200 Net Weight(kg) 150   BS4535LA SHRINK TUNNAL BS6535LA SHRINK TUNNAL:                                                                       BS-A series shrink tunnel adopts hot-wind & down-cyclone structure, intelligence temperature control and AC variable speed regulation. There are two optional conveyors, including Teflon belt type and roller [...]

CONVEYOR                          : ROLLER (MESH OPTIONAL) VOLTAGE                             :  440V / 50HZ / 3PH POWER                                  :  9.6 KW (13HP) LOAD                                     :  30KGS SPEED                                    :  0-10M/MIN TUNNEL SIZE                       : 1200X450X350MM MACHINE DIMENSION       : 1600X850X1200MM M/C.NET WEIGHT                : 120KGS BS4535LA SHRINK TUNNAL BS-A series shrink tunnel adopts hot-wind & down-cyclone structure, intelligence temperature control and AC variable speed [...]

CONVEYOR ROLLER,  MESH (OPTIONAL) VOLTAGE(V/HZ) 440V / 50Hz (3PH)  POWER(KW) 6.5 LOADING(KG) 10 SPEED(M/MIN) 0~10 TUNNEL SIZE (L×W×H)(MM) 900×450×(50-250) EXTERNAL DIMENSIONS(L×W×H)(MM) 1200×650×1100 NET WEIGHT(KG) 90     BS4525A SHRINK TUNNAL (ROLLER TYPE/ MESH TYPE) BS-A series shrink tunnel adopts hot-wind & down-cyclone structure, intelligence temperature control and AC variable speed regulation. There are two optional conveyors, [...]

Voltage (V/Hz) 220V / 50HZ Motor power (W) 900 Sealing Power (W) 600 Ultimate Vacuum Pressure (Kpa) 1 Sealing Width (mm) 10 Chamber Dimension (L×W×H) (mm) 520×525×140 Vacuum Pump capacity (m3/h) 20 Material for Vacuum Chamber SUS304 External Dimensions (L×W×H) (mm) 650×570×1010 Net Weight (Kg) Approx.112         IS- DZ500/2E, SS BODY VACUUM [...]

Application: FXJ series semiautomatic carton sealer is suitable for circumstance where the size of cartons does not change frequently, which especially fits for continuous sealing of cartons in the same size. The machine is used in the fields of domestic electrical appliance, foodstuffs, general merchandise, medicine and chemical industries.  FXJ 6050 Carton Sealing Machine

Voltage (V/HZ)                                             : AC 220/50 110/60 Motor Power (W)                                       : 50W Sealing Power (W)                                      : 300X2 Speed (m/min)                                            : 0-12（0-16） Distance from Sealing Center to the opening part of package(mm)                                 : 0-22 Distance from Sealing Center to Conveyor (mm)                                            : 52-450 Temperature Range (℃)                           : [...]

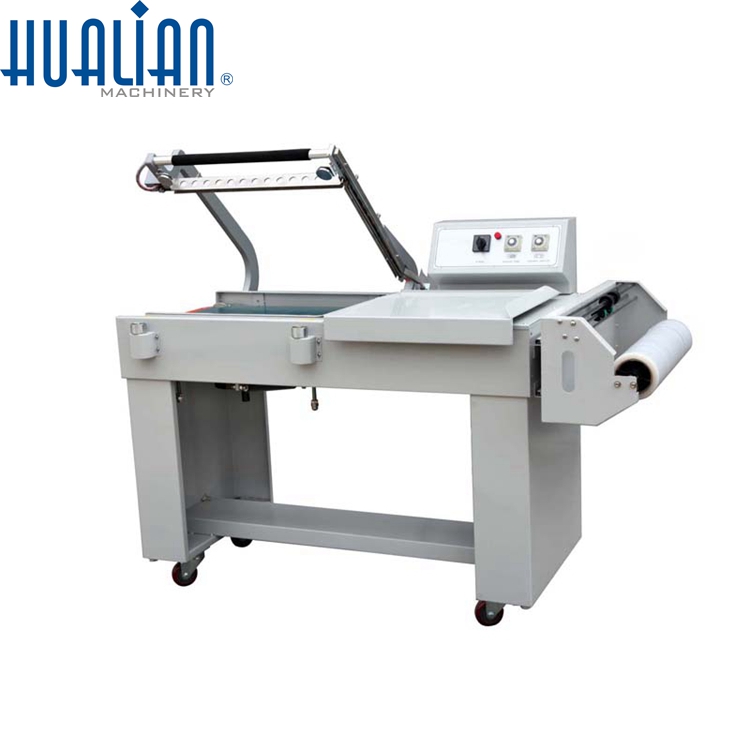

Voltage(V/Hz) 220V / 50HZ Power (kw) 1.2 Capacity（PCS/）h） 800-1200 Max. Packing Size (mm) W+H<450，W<400 Max. Sealing &Cutting Size(L×W)（mm） 500×450 External Dimension (L×W×H)(mm) 1560×757×1040 Net Weight (kg) 125 BSL-5045L BSL Series Semiautomatic L-Seal Cutting Machine BSL5045L- Semi Automatic L-seal cutting machine can convey the products automatically into shrink tunnel through conveying belt for shrink packaging after sealing [...]

Voltage                                               :  AC 220/50Hz Motor Power                                       :  50W Sealing Power                                     :  300 X 2                                                                                                      Speed                                                  :  0-12 M/MIM Sealing width                                      :  10MM  Distance from sealing Center to conveyor                             :  10-40MM Temperature                                       :  0-300 C Conveyor size L X W                         :  840 X 153MM Conveyor load for single [...]

Power supply                   :         440V 3Ph 50Hz Cabinet metal sheet          :         3.0mm thickness PP strap width                 :         12mm (6,9,15 Optional) Standard Arch Size          :         W 850 x H 600 mm (Standard) Sealing method                :         Heat sealing Tension strength              :         Max 70kgs Strapping speed               :         2.0 second/strap Core inner Dia                 :         200mm Machine Dimension (LXWXH) : [...]
